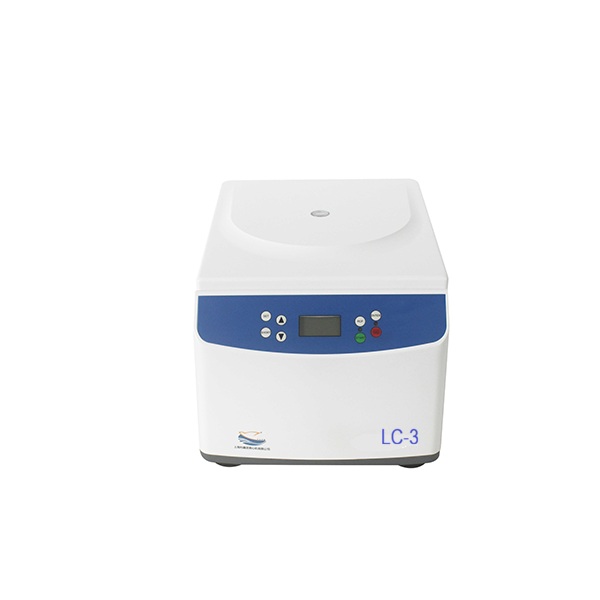

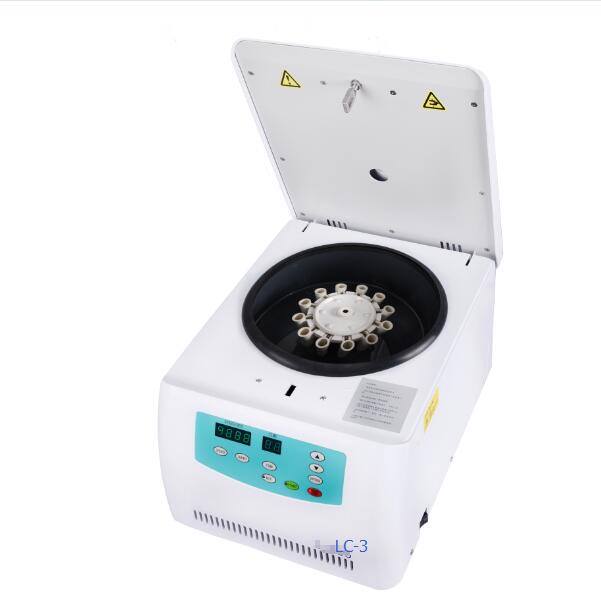

免疫血液洗涤离心机LC-3

型号Model

LC-3

最高转速（角式）Max. Speed

3000r/min

转子类型 Rotor type

淋巴球清洗用转子/HLA

红血球清洗用转子/SERO

转子容量Rotor Capacity

(0.25～1ml)×12

12×7ml

（长度65-80mm，外经10-13mmX12支）

最大相对离心力（角式）Max. RCF

2000×g

1000×g

控制方式Control method

微机控制，直流无刷电机驱动

Microcomputer control, DC Brush-less motor

定时方式Timing method

电子定时（程序化）

Electronic timing (programmed)

转速精度Speed Accuracy

±10r/min

整机噪声Noise

≤ 65dB(A)

电源Voltage Supply

AC220V/ 50Hz/ 5A(OR AC110V)

整机功率Power

60W

外形尺寸Dimension (mm)

330×420×280mm(L×W×H)

重量Weight (kg)

14 KG

转子名称       Name of Rotor

程序号Key

离心力 (xg)

离心时间Centrifugal time

          用途                          Use

淋巴球清洗用转子

HLA Rotor For lymphocyte  washing

1

2000

180s

淋巴球分离，培养细胞分离

Lymphocytes separation incubated cell separation

2

1000

3s

血小板去除 （凝血酶处理）

Hecatomb last exenterate (thrombin disposal)

3

1000

60s

淋巴球清洗lymphocyte washing

红血球清洗用转子SERO Rotor For Erythrocyte washing

1

500

60s

血液测定、血球凝集反应观察

      Blood grouping Observation of hem agglutination reaction.

2

1000

15s

交叉适合性实验，抗球素实验

       Cross matching The testing of antis taphyoloysin

3

1000

60s

血清清洗、血清、血浆的提取                Hematocyte washing The extraction of serum and plasma.
