Home >> Centrifuge >> Tabletop Low-speed Centrifuge TL-60

Low-Speed Centrifuge Series

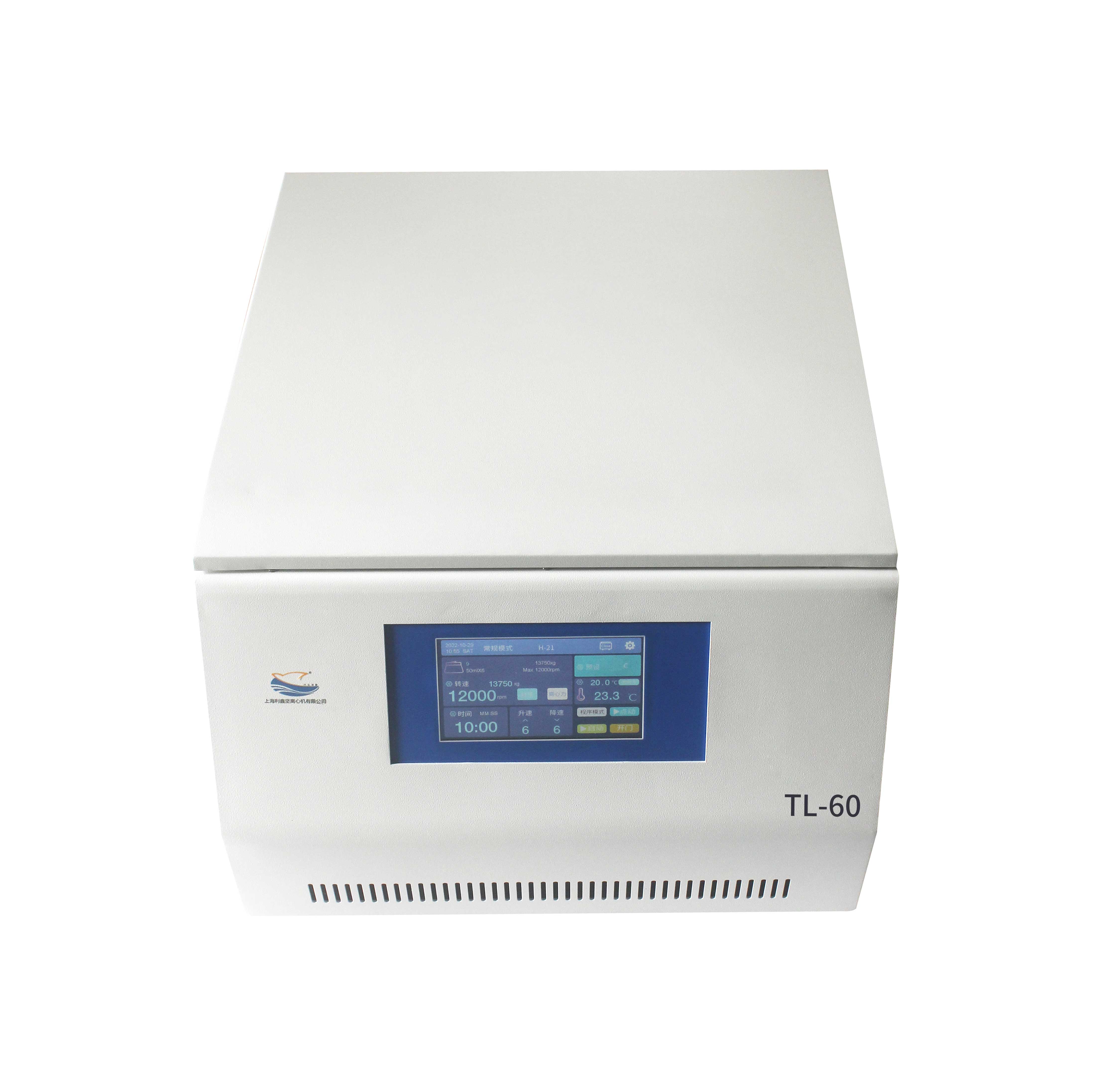

Tabletop Low-speed Centrifuge TL-60

Application:

It is widely used in clinical medicine, scientific research, laboratories, agriculture and animal husbandry, food hygiene, biology, chemistry, medicine, pharmaceuticals and other fields.

Features:

  • Microcomputer control, DC Frequency motor, Silent, constant, stable and high-speed accuracy
  • Touching panel, LCD (7.1 inches) screen which can display the speed, centrifugal force and time in real time at the same time. The parameter can be set according to demands during operation and stored automatically.
  • Lid safety device, with Lid, over-speed, over-temperature, unbalance protection system, automatic fault alarm function, safe and reliable. Safety-Lock lid, which ensures a safe, tight closure on the centrifuge chamber during operation. Electronic lock and emergency lid release are available.
  • 10 programs of acceleration and deceleration level for your choice.

Specification:

Model

TL-60

Max. Speed

8000r/min

Max. RCF

9100×g

Max. Capacity

4×750ml

Speed Accuracy

±10r/min

Time Range

10s-9h59min59s

Noise

65dB(A)

Voltage Supply

AC220V/ 50Hz/ 25A (OR AC110V)

Power

1.1KW

Dimension (mm)

680×520×480mm(L×W×H)

Weight (kg)

65KG

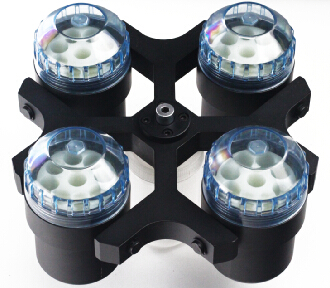

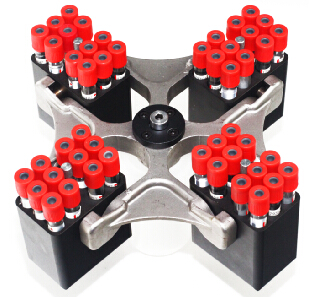

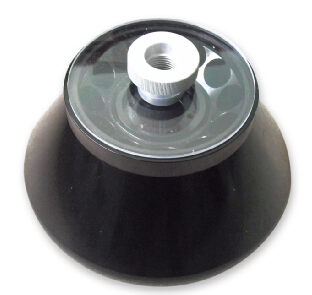

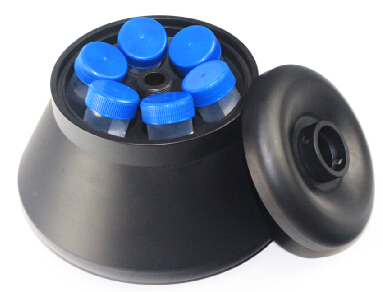

Rotor parameters:

Rotor No.

Rotor Name

Max. Speedr/min

Max. RCF

Capacity (Tubes* ml)

No.1

Fixed (angle rotor)

8000

9100

8×100ml

6×50ml

No.2

Horizontal rotor

4200

3825

4×750ml

No.3

Horizontal rotor

4600

4210

4×500ml

4×500mlConical bottom

No.4

Horizontal rotor

5000

4720

4×250ml

No.5

Horizontal rotor

5000

5190

4×250mlConical bottom

No.6

Horizontal rotor

4200

3550

6×250ml

No.7

Horizontal rotor

4200

4380

6×250mlConical bottom

No.8

Horizontal rotor

/

/

/

Buckets

4500

3550

4×12×5/7ml

4×16×5/7ml

4×18×5/7ml

No.9

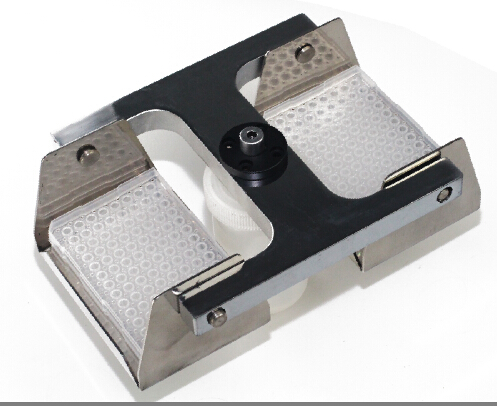

Horizontal enzyme-labeled rotor

4000

3040

4×2×96

No.10

Horizontal rotor

4200

3510

16×50ml

No.11

Horizontal rotor

6000

3200

4×10ml
