High-Speed Centrifuge Series

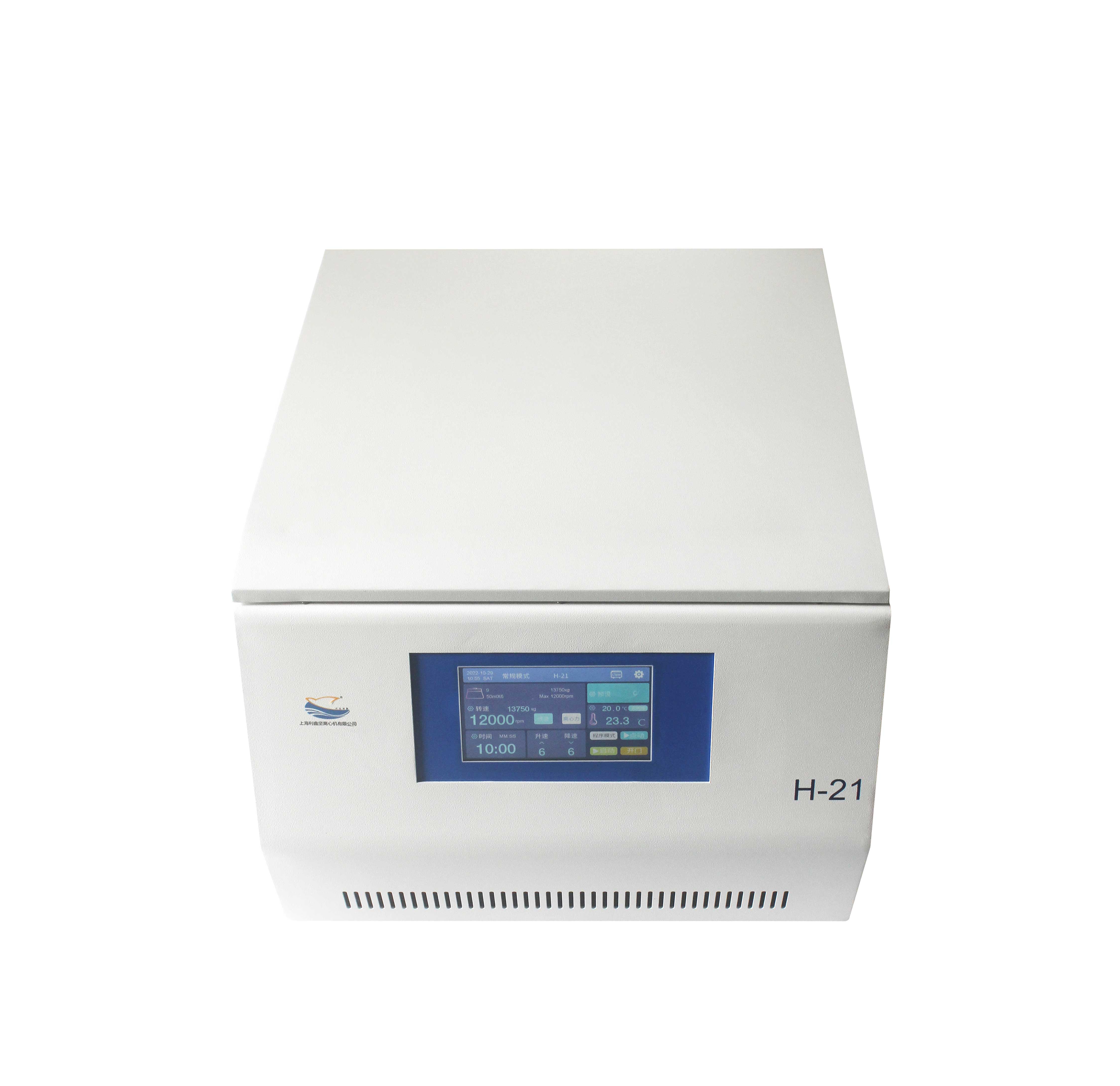

Tabletop High-speed Centrifuge H-21

Application:

It is widely used in Medical, scientific research, laboratories, agriculture and animal husbandry, food hygiene, biopharmaceuticals, chemistry, medicine fields.

Features:

Microcomputer control, DC Frequency motor, Silent, constant, stable and high-speed accuracy
Touching panel, LCD (7.1 inches) screen which can display the speed, centrifugal force and time in real time at the same time.
The parameter can be set according to demands during operation and stored automatically
Lid safety device, with Lid, over-speed, unbalance protection system, automatic fault alarm function, safe and reliable. Safety-Lock lid, which ensures a safe, tight closure on the centrifuge chamber during operation. Electronic lock and emergency lid release are available.
10 programs of acceleration and deceleration level for your choice.

Specification:

Model	H-21
Max. Speed	21000r/min
Max. RCF	29580×g
Max. Capacity	4×750ml
Speed Accuracy	±10r/min
Time Range	10s-9h59min59s
Noise	≤ 65dB(A)
Voltage Supply	AC220V/ 50Hz/ 25A (OR AC110V)
Power	1.5KW
Dimension (mm)	680×520×480 mm(L×W×H)
Weight (kg)	65KG

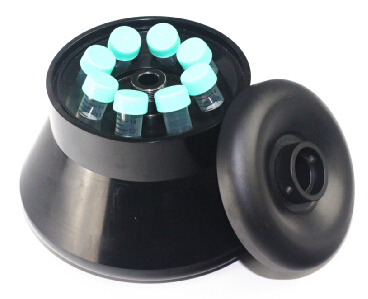

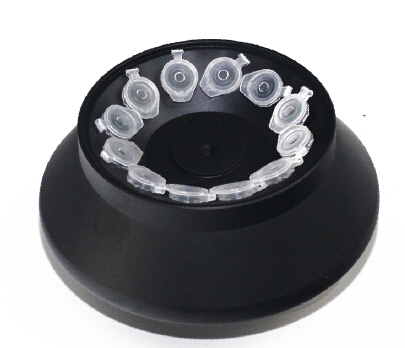

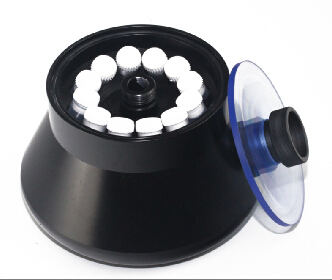

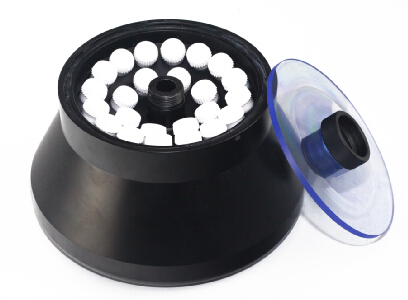

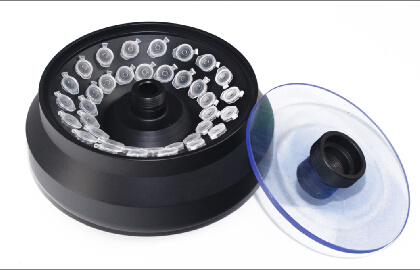

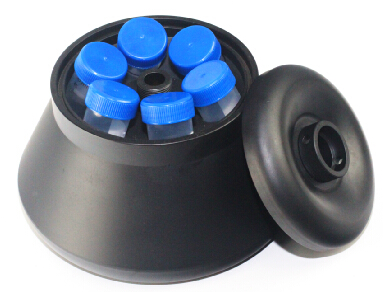

Rotor parameters:

Rotor No.	Rotor Name	Max. Speed（r/min）	Max. RCF	*Capacity (Tubes ml)**
No.1	Fixed (angle rotor)	21000	29580	12×1.5/2.2ml
No.2	Fixed (angle rotor)	16000	24320	24×1.5/2.2ml
No.3	Fixed (angle rotor)	13500	18330	48×1.5/2.2ml
No.4	Fixed (angle rotor)	16500	20540	12×5ml
No.5	Fixed (angle rotor)	13500	17320	20×5ml
No.6	Fixed (angle rotor)	15000	23400	12×10ml
No.7	Fixed (angle rotor)	13000	17200	24×10ml
No.8	Fixed (angle rotor)	13000	16060	8×15ml
No.9	Fixed (angle rotor)	14000	20370	6×50ml
No.10	Fixed (angle rotor)	12000	16900	8×50ml
No.11	Fixed (angle rotor)	10000	12070	6×100ml
No.11	Fixed (angle rotor)	10000	12070	6×85ml
No.12	Horizontal rotor	4500	4410	4×750ml
No.13	Horizontal rotor	4500	3980	4×500ml
No.14	Horizontal rotor	4200	3550	6×250ml

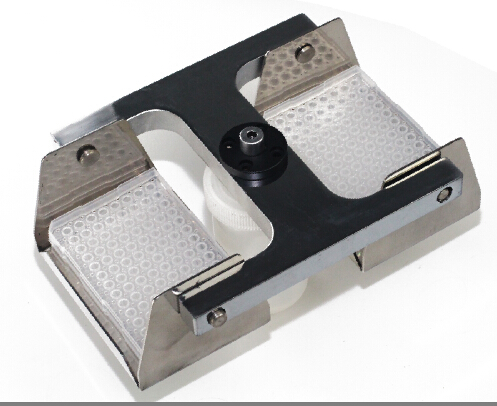

No.15	Horizontal enzyme-labeled rotor	4000	3040	PCR 4×2×96hole
