Refrigerated High-Speed Series

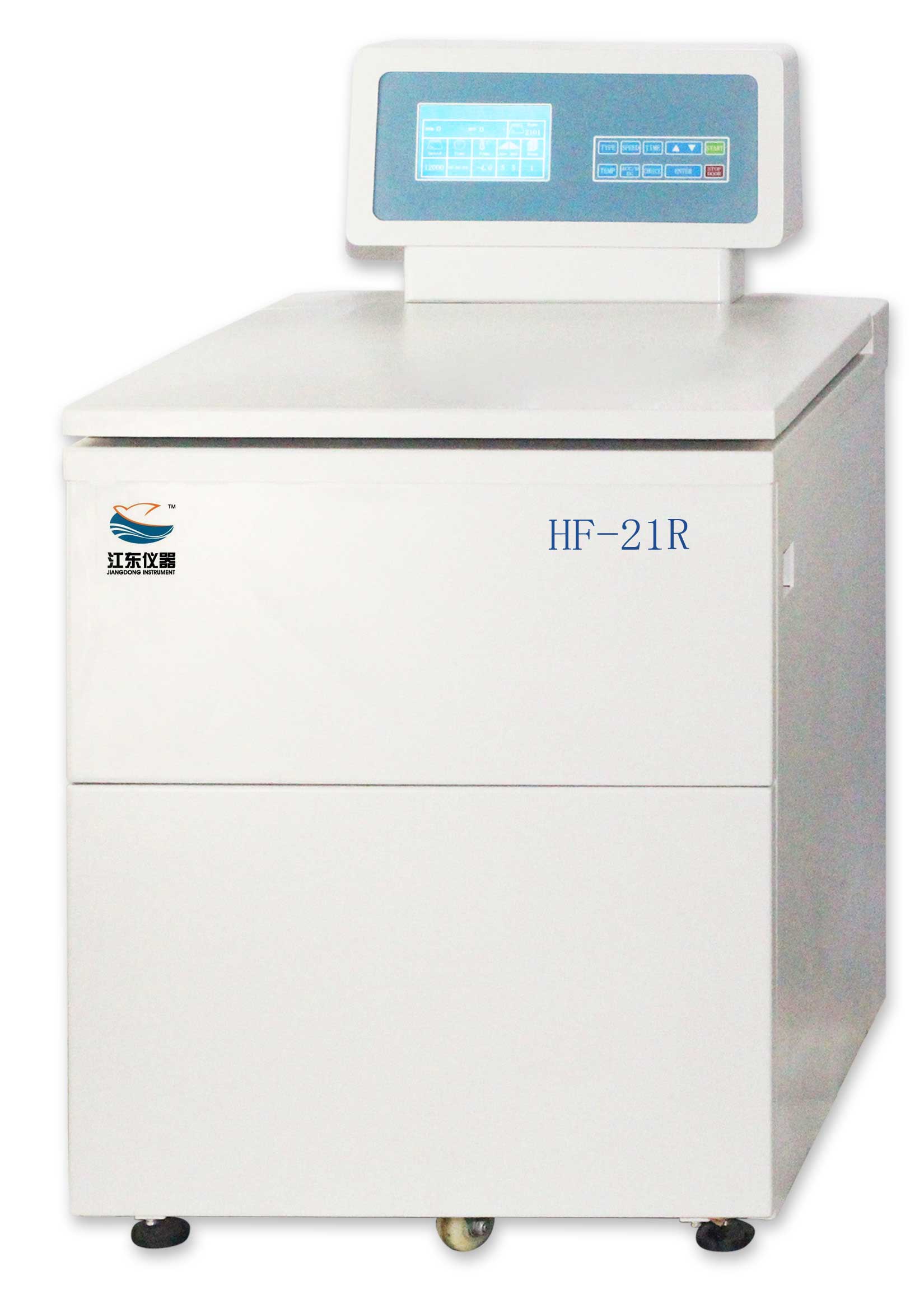

High-speed Refrigerated Centrifuge HF-21R

Application:

It is widely used in the field of clinical medicine, biochemistry, genetic engineering and immunology etc. it is the essential equipment for centrifuge on used by hospitals, scientific research units and institutions of higher learning.

Features:

Microcomputer control, DC Frequency motor, Silent, constant, stable and high-speed accuracy.
Touching panel, LCD (10.1 inches) display, Speed/RCF and time display. RCF is automatically calculated.
The operation data can be set according to demands and stored automatically.
Lid safety device, with Lid, over-speed, over-temperature, unbalance protection system, automatic fault alarm function, safe and reliable. Safety-Lock lid, which ensures a safe, tight closure on the centrifuge chamber during operation. Electronic lock and emergency lid release are available.
10 programs of acceleration and deceleration level for your choice.

Specification:

Model	HF-21R
Max. Speed	22000r/min
Max. RCF	51940×g
Max. Capacity	6×1000ml
Speed Accuracy	±10r/min
Time Range	10s-9h59min59s
Temperatures Setting	-20℃～+40℃
Temperature Accuracy	±1℃
compressor	high-performance compressor, gas R404a
Noise	≤ 58dB(A)
Voltage Supply	AC220V/ 50Hz/ 32A (OR AC110V)
Power	3.4KW
Dimension (mm)	710×840×1200mm(L×W×H)
Weight (KG)	260KG

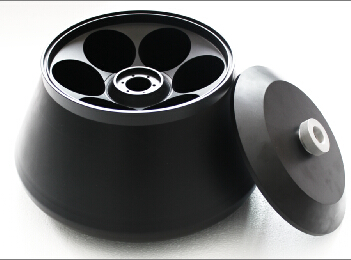

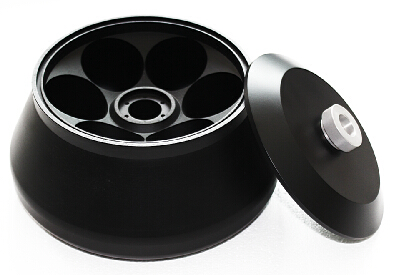

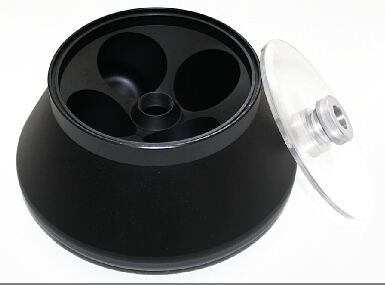

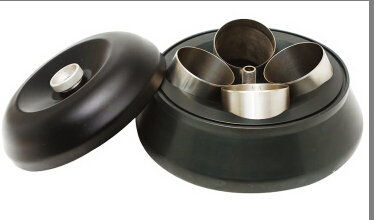

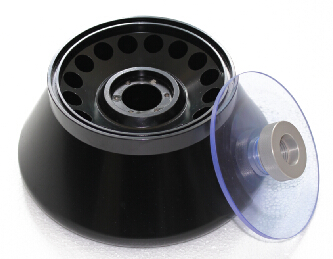

Rotor parameters:

Rotor No.	Rotor Name	Max. Speed（r/min）	Max. RCF	*Capacity (Tubes ml)**
No.1	Fixed (angle rotor)	22000	51940	16×10ml
No.2	Fixed (angle rotor)	21000	50280	18×10ml
No.3	Fixed (angle rotor)	16500	31046	12×20ml
No.4	Fixed (angle rotor)	20000	43370	6×50ml
No.5	Fixed (angle rotor)	18000	38390	8×50ml
No.6	Fixed (angle rotor)	14000	26620	8×85ml
No.6	Fixed (angle rotor)	14000	26620	8×100ml
No.7	Fixed (angle rotor)	16000	30330	6×100ml
No.8	Fixed (angle rotor)	13000	24650	6×250ml
No.9	Fixed (angle rotor)	11000	21640	6×300ml
No.10	Fixed (angle rotor)	10000	17880	6×500ml
No.11	Fixed (angle rotor)	7000	8930	6×600ml
No.12	Fixed (angle rotor)	7000	9040	4×750ml
No.13	Fixed (angle rotor)	7000	10130	4×1000ml
No.14	Fixed (angle rotor)	7000	11700	6×1000ml
No.14	Fixed (angle rotor)	7000	11700	4×1200ml
