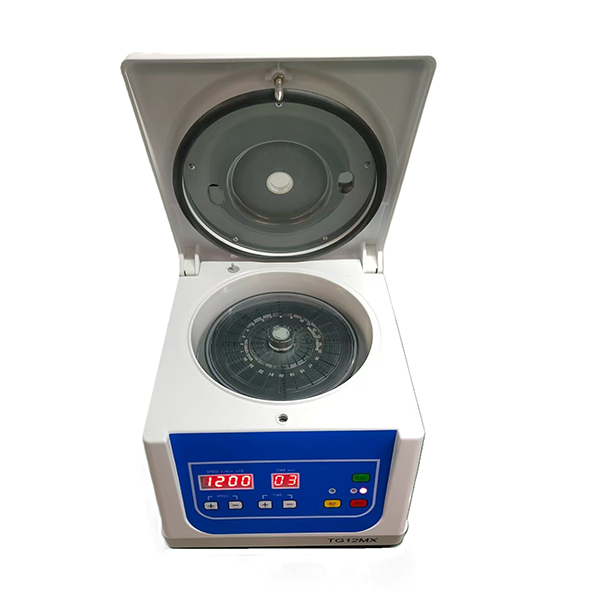

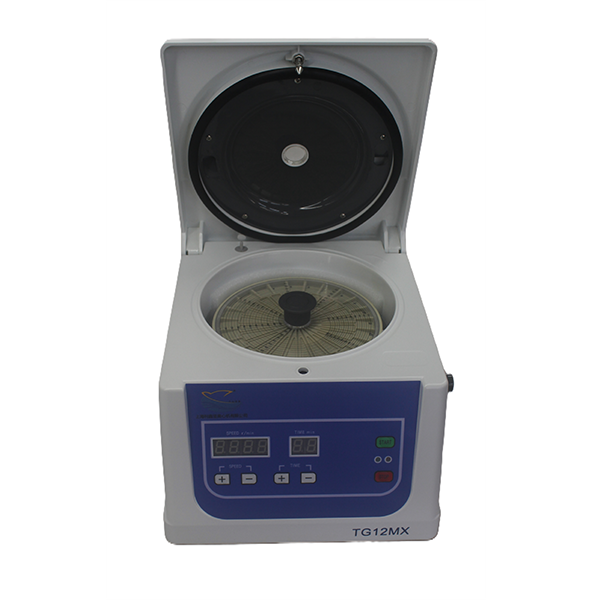

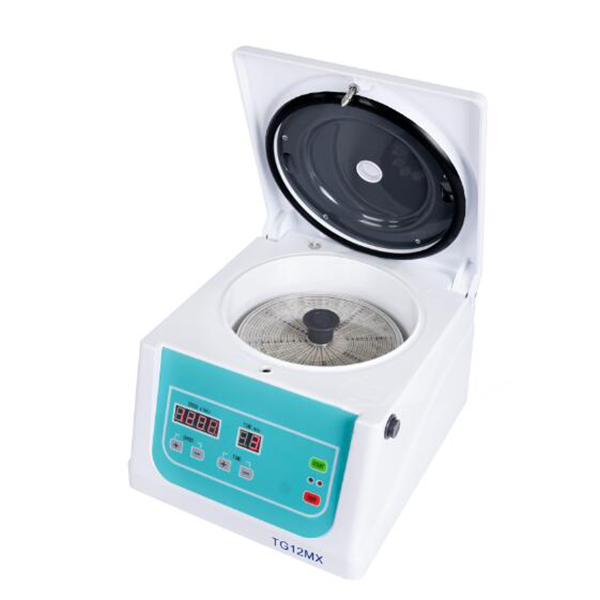

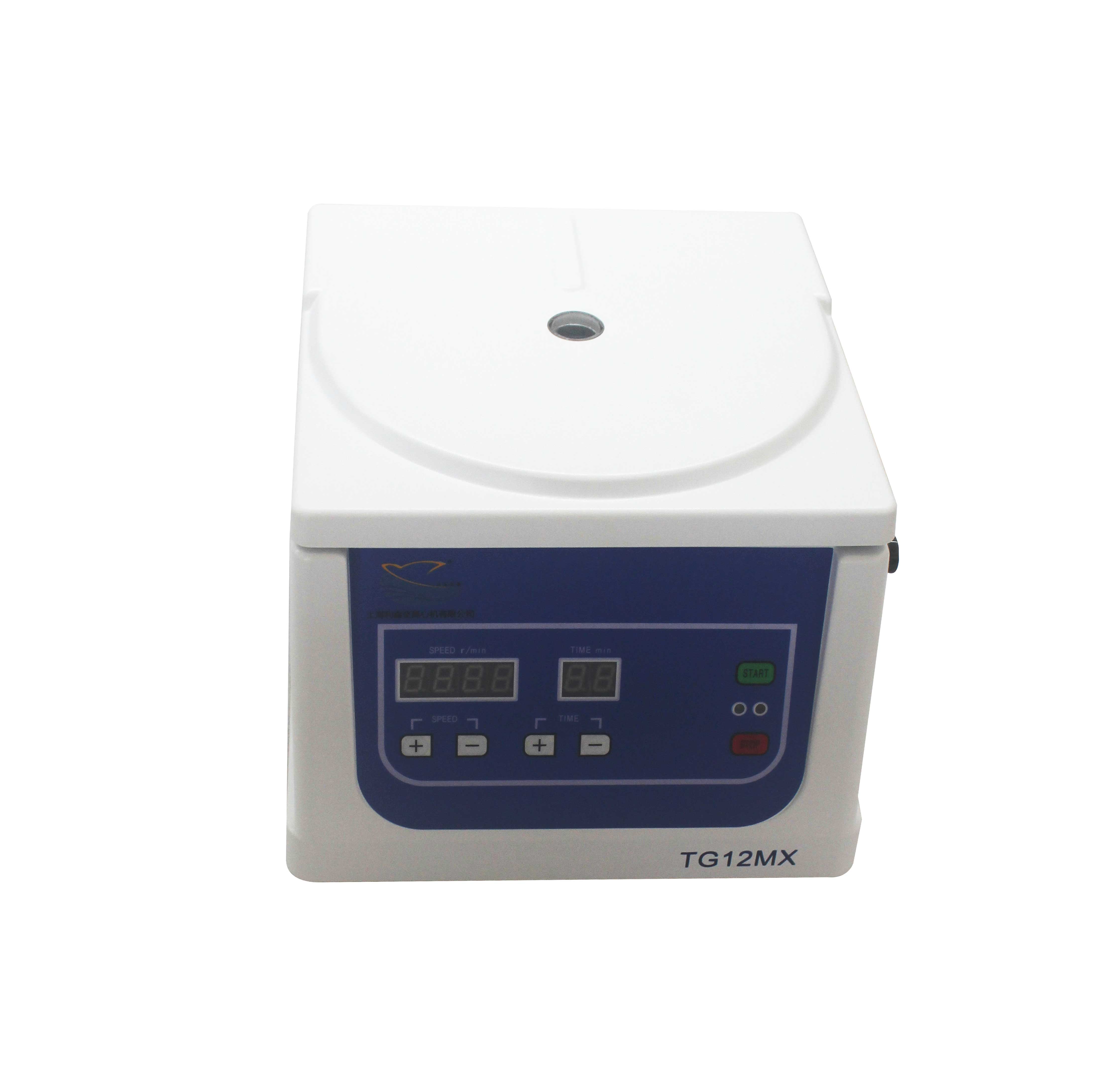

Hematocrit Centrifuge TG12MX

Application:

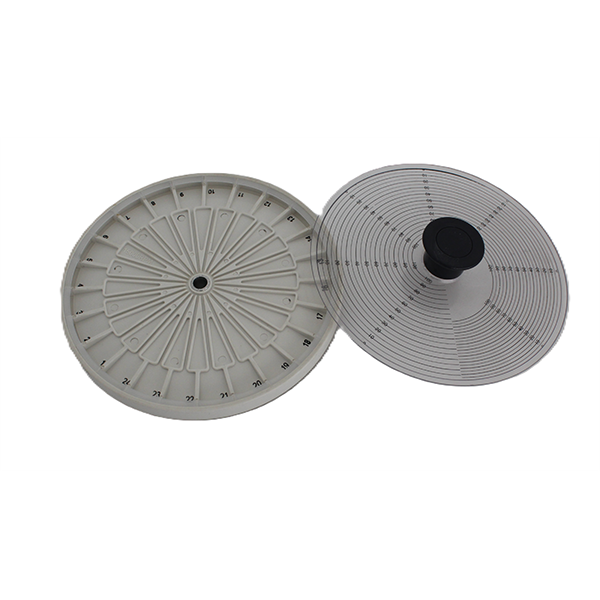

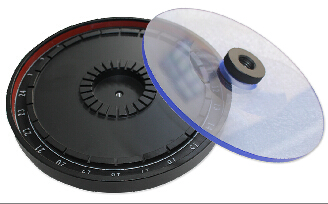

The HAEMATOKRIT TG12MX delivers high-performance hematocrit centrifugal and convenient ergonomics and versatility for the modern laboratory. Within a compact, elegant frame, the HAEMATOKRIT TG12MX is able to hold up to 24 capillaries per run and achieves best results within seven minutes. The hematology rotor also features a lid that doubles as an evaluation disc for quick and easy analysis.

Features:

  • Microcomputer control, DC Frequency motor, Silent, constant , stable and high speed accuracy.
  • Touch button, parameters can be set according to demands during operation and stored automatically.
  • Digital display, which can switch the reading between rpm/RCF in real time.
  • ABS Outlook injection molding at one time, with simple appearance, light volume and low noise.
  • Lid safety device, with Lid, over-speed, unbalanced protection system, automatic fault alarm function, safe and reliable. Safety-Lock lid, which ensures a safe, tight closure on the centrifuge chamber during operation. Electronic lock and emergency lid release are available.

Specification:

Model

TG12MX

Max. Speed

12000r/min

Max. RCF

14800×g

Max. Capacity

24 capillary (75 mm length)

Speed Accuracy

±10r/min

Time Range

1min--99mins

Noise

65dB(A)

Voltage Supply

AC220V/ 50Hz/ 5A (OR AC110V)

Power

100W

Dimension (mm)

310×280×270mm(L×W×H)

Weight (kg)

8 KG
