Refrigerated Centrifuge

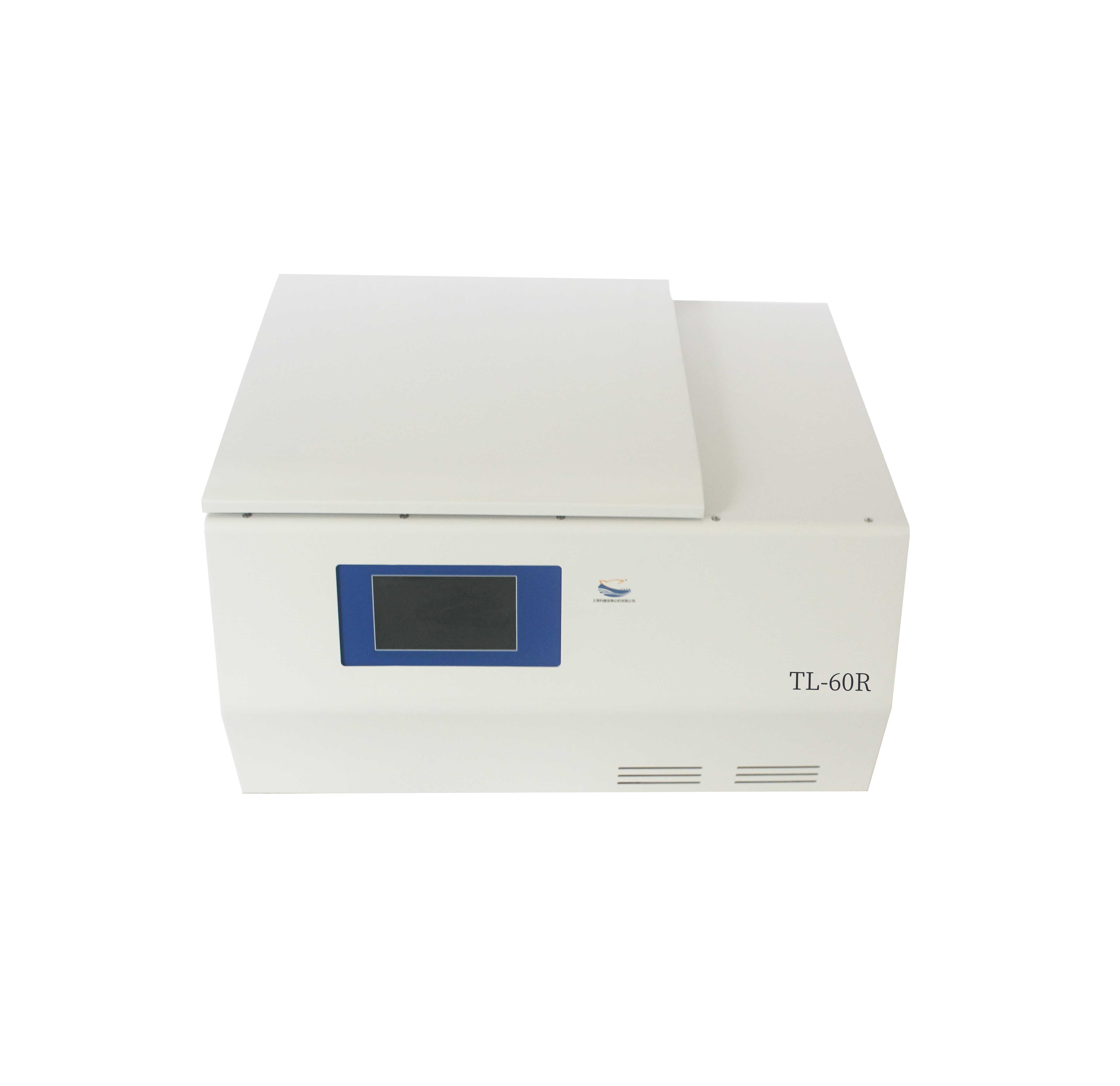

Large Capacity Refrigerated Centrifuge TL-60R

Application:

It is widely used in clinical medicine, scientific research, laboratories, agriculture and animal husbandry, food hygiene, biology, chemistry, medicine, pharmaceuticals and other fields.

Features:

Microcomputer control, DC Frequency motor, Silent, constant, stable and high-speed accuracy
Touching panel, LCD (7.1 inches) screen which can display the speed, centrifugal force and time in real time at the same time. The parameter can be set according to demands during operation and stored automatically.
Lid safety device, with Lid, over-speed, over-temperature, unbalance protection system, automatic fault alarm function, safe and reliable. Safety-Lock lid, which ensures a safe, tight closure on the centrifuge chamber during operation. Electronic lock and emergency lid release are available.
10 programs of acceleration and deceleration level for your choice.

Specification:

Model	TL-60R
Max. Speed	8000r/min
Max. RCF	9100×g
Max. Capacity	4×750ml
Speed Accuracy	±10r/min
Time Range	10s-9h59min59s
Temperatures Setting	-20℃～+40℃
Temperature Accuracy	±1℃
compressor	high-performance compressor, gas R404a
Noise	≤ 58dB(A)
Voltage Supply	AC220V/ 50Hz/ 25A (OR AC110V)
Power	1.6KW
Dimension (mm)	720×550×480 mm(L×W×H)
Weight (kg)	130KG

Rotor parameters:

Rotor No.	Rotor Name	Max. Speed（r/min）	Max. RCF	Capacity (Tubes* ml)

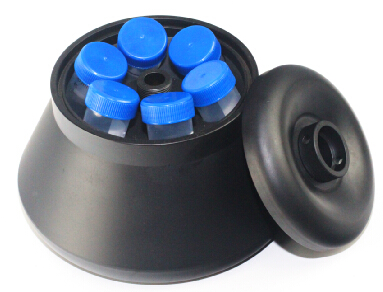

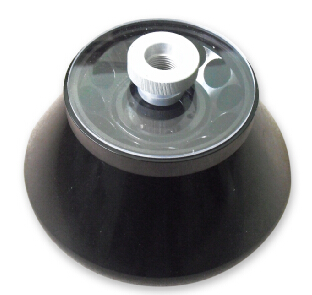

No.1	Fixed (angle rotor)	8000	9100	8×100ml
No.1	Fixed (angle rotor)	8000	9100	6×50ml

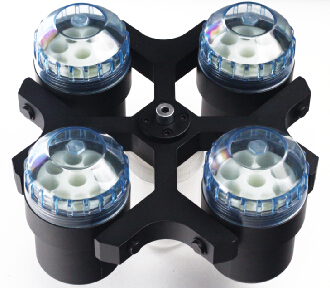

No.2	Horizontal rotor	4200	3825	4×750ml
No.3	Horizontal rotor	4600	4210	4×500ml
No.3	Horizontal rotor	4600	4210	4×500ml（Conical bottom）
No.4	Horizontal rotor	5000	4720	4×250ml
No.5	Horizontal rotor	5000	5190	4×250ml（Conical bottom）
No.6	Horizontal rotor	4200	3550	6×250ml
No.7	Horizontal rotor	4200	4380	6×250ml（Conical bottom）
No.8	Horizontal rotor	/	/	/

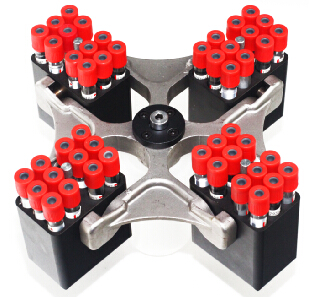

	Buckets	4500	3550	4×12×5/7ml
				4×16×5/7ml
				4×18×5/7ml

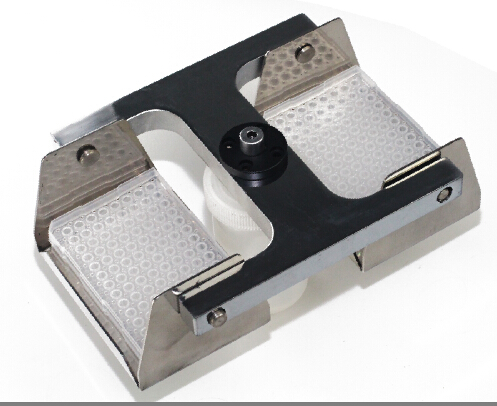

No.9	Horizontal enzyme-labeled rotor	4000	3040	4×2×96孔
No.10	Horizontal rotor	4200	3510	16×50ml
No.11	Horizontal rotor	6000	3200	4×10ml
