Large Capacity Centrifuge

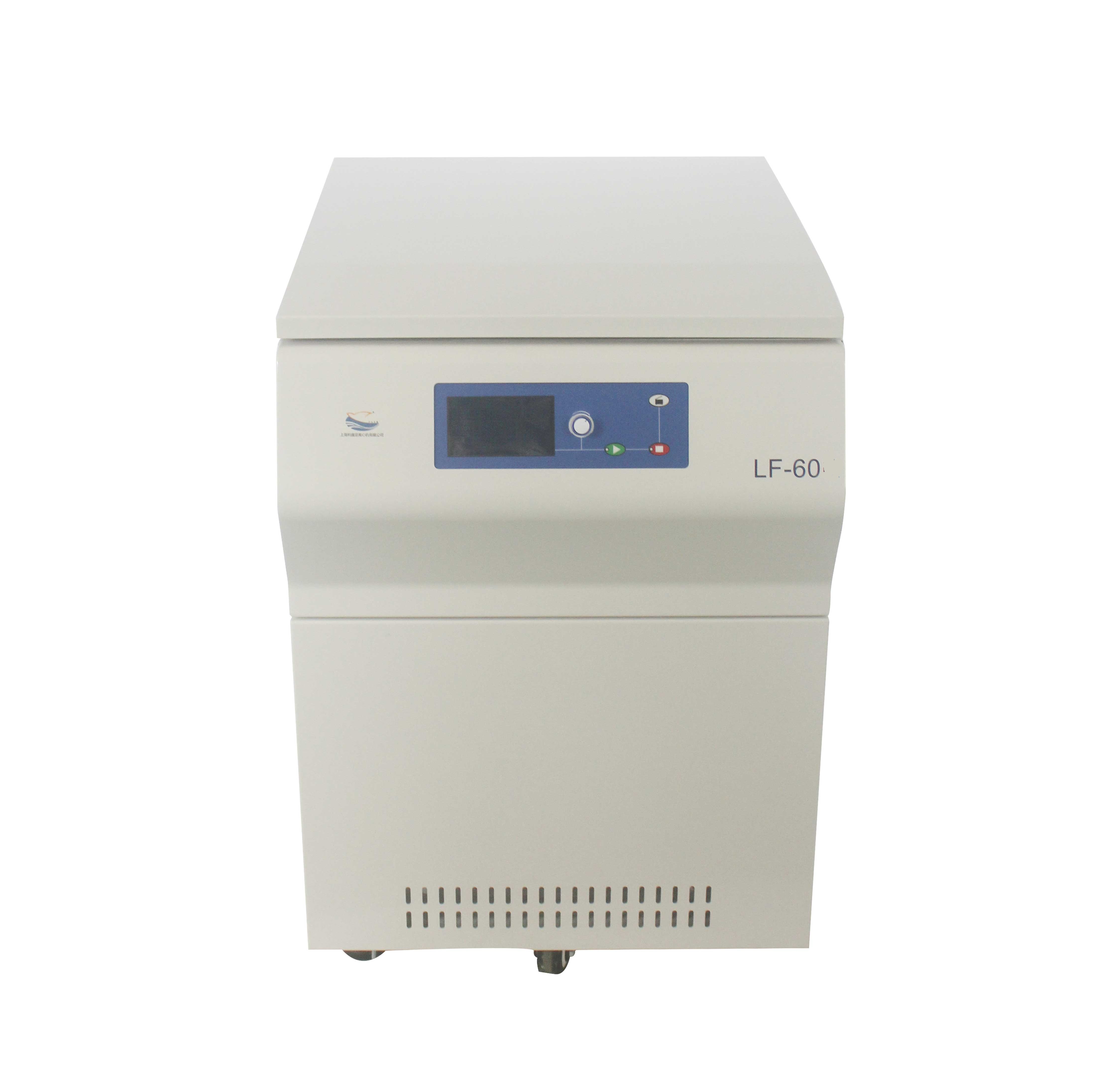

Low-speed Centrifuge LF-60

Application:

It is widely used in clinical medicine, laboratory, biochemistry, genetic engineering, immunology and other fields, suitable for separation and purification of radio-immunity, water treatment, bio-pharmaceuticals, and blood products.

Features:

Microcomputer control, DC Frequency motor, Silent, constant, stable and high-speed accuracy
Single knob button, time, speed, RCF, and programs etc.，can be set according to requirements during operation.
LCD display, Speed/RCF and time display. RCF is automatically calculated.
LCD screen, which can display the speed, centrifugal force and time in real time at the same time.
Lid safety device, with Lid, over-speed, over-temperature, unbalance protection system, automatic fault alarm function, safe and reliable. Safety-Lock lid, which ensures a safe, tight closure on the centrifuge chamber during operation. Electronic lock and emergency lid release are available.
10 programs of acceleration and deceleration level for your choice.

Specification:

Model	LF-60
Max. Speed	8000r/min
Max. RCF	9100×g
Max. Capacity	4×1200ml
Speed Accuracy	±10r/min
Time Range	10s-9h59min59s
Temperatures Setting	---
Temperature Accuracy	---
Compressor	---
Noise	≤ 65dB(A)
Voltage Supply	AC220V/ 50Hz/ 20A (OR AC110V)
Power	1.2KW
Dimension (mm)	740×640×840mm(L×W×H)
Weight (kg)	140KG

Rotor parameters:

Rotor No.	Rotor Name	Max. Speed（r/min）	Max. RCF	*Capacity (Tubes ml)**
No.1	Fixed (angle rotor)	8000	9100	8×100ml
No.1	Fixed (angle rotor)	8000	9100	6×500ml
No.2	Horizontal rotor	4200	5100	4×1200ml（Square cup for blood bag）
No.3	Horizontal rotor	4200	4530	4×1200ml（Round cup for blood bag）
No.4	Horizontal rotor	4200	4450	4×1000ml
No.5	Horizontal rotor	4500	4340	4×750ml
No.6	Horizontal rotor	5000	5890	6×500ml
No.7	Horizontal rotor	5000	4890	4×500ml
No.7	Horizontal rotor	5000	4890	4×500ml（Conical bottom）
No.8	Horizontal rotor	5000	5030	6×250ml
No.9	Horizontal rotor	5000	6370	6×250ml（Conical bottom）
No.10	Horizontal rotor	5000	4800	4×250ml
No.11	Horizontal rotor	5000	5190	4×250ml（Conical bottom）
No.12	Horizontal rotor	4000	4200	168×5ml
No.13	Horizontal enzyme-labeled rotor	4000	3040	PCF 4×2×96
