Model	TG12MX
Max. Speed (RPM)	12,000r/min
Max. RCF	14,800*g
Max. Capacity	24 capillary  (1.75 mm x 75 mm length)
Speed Accuracy	±10r/min
Time Range	1min-99min
Noise	<55 dB(A)
Motor	Brushless motor
Voltage Supply	AC 110V  OR 230V   50/60Hz
Dimension (mm)	390x275x300
Weight (kg)	8



Application:

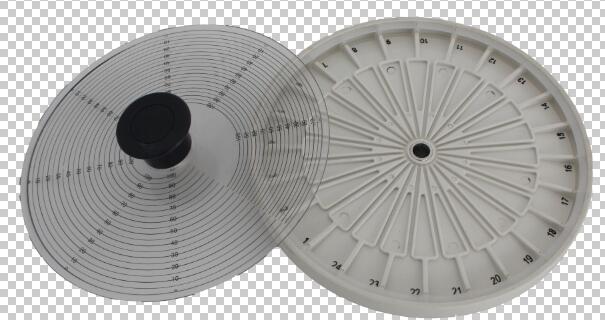

The HAEMATOKRIT TG12MX delivers high-performance hematocrit centrifugation and convenient ergonomics and versatility for the modern laboratory. Within a compact, elegant frame, the HAEMATOKRIT TG12MX is able to hold up to 24 capillaries per run and achieves best results within seven minutes. The hematology rotor also features a lid that doubles as an evaluation disc for quick and easy analysis.
With its powerful and ergonomic features, the HEMATOCRIT TG12MX meets the requirements of the modern laboratory and sets a new standard for hematology centrifugation.

l Microcomputer control, DC brushless motor, ABS housing.

l Silent, constant and stable, touching panel.

l LED display, Speed/RCF and time display.

l RCF is automatically calculated.

l Easy to use, easy to change bucket.

l Over speed and imbalance protection. There are lid safety device, it will stop when the lid is open. Safety-Lock lid, which ensures a safe, tight closure on the centrifuge chamber during operation.

l Electronic lock and emergency lid release are available.

l The countdown time is less than one minute in seconds.

l Electronic door lock, it cannot be started if the cover is not closed completely , safety  and reliable.
